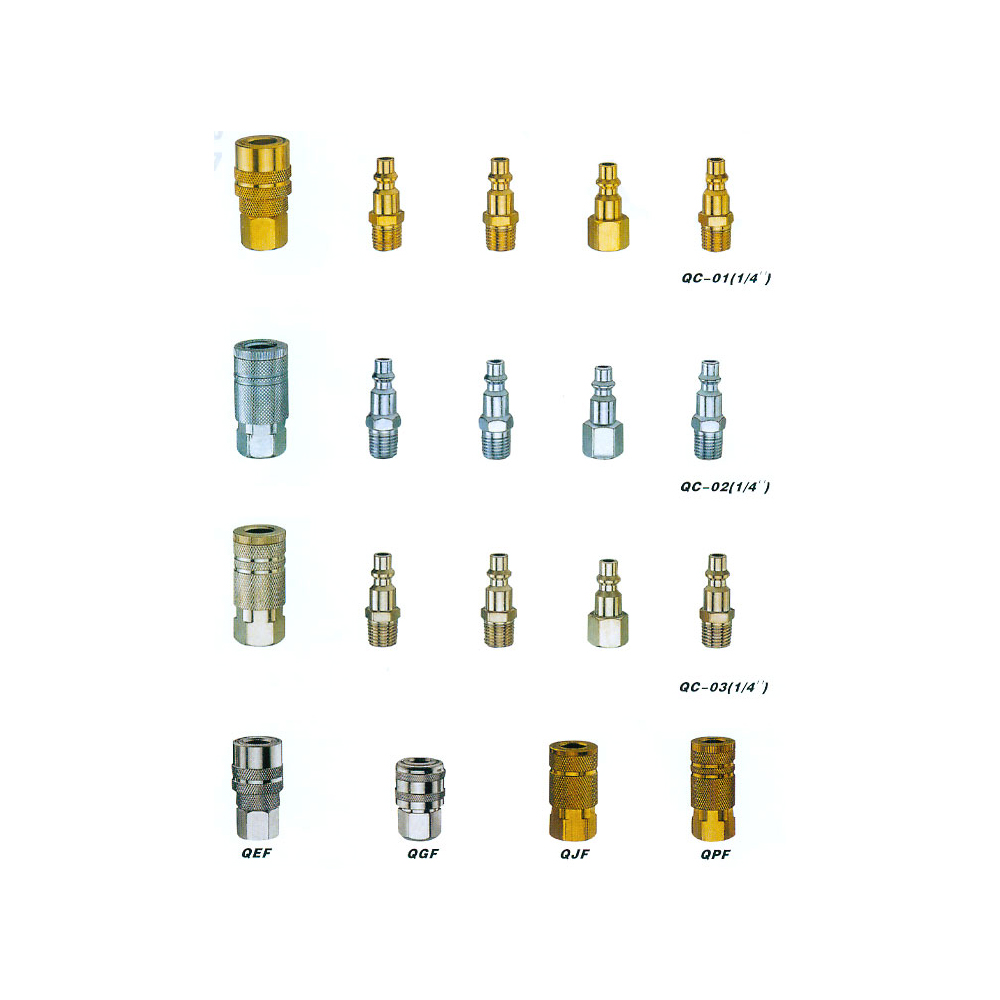

The range of "Automatic Quick Couplings" series makes easier and quicker connection and disconnection of movable tubes from compressed air systems without stopping the flow upstream. The various models distinguish theirselves with a different standard, which ideally match the most common international couplings.

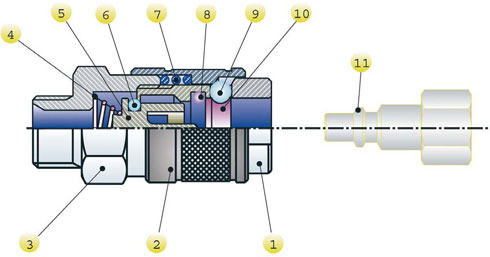

Component Parts and Materials
1 Body made in Nickel-plated Brass
2 Sleeve made in Nickel-plated Brass
3 Coupling Back part made in Nickel-plated Brass
4 Shutter Thrust Spring made in Steel AISI 302
5 Shutter made in Nickel-plated Brass
6 O-Ring seals made in NBR 70 (if requested FKM)
7 Ring nut thrust spring made in Steel AISI 302
8 O-Ring seals made in NBR 70 (if requested FKM)
9 Balls made in Steel AISI 420
10 Guide ring Coupling made in Nickel-plated Brass
11 Plug Outline made in Nickel-plated Brass
